[fixed] draw2DRectangleOutline() top-left pixel missing

[RdR]

I noticed a bug in draw2DRectangleOutline() for the DirectX 9 driver.

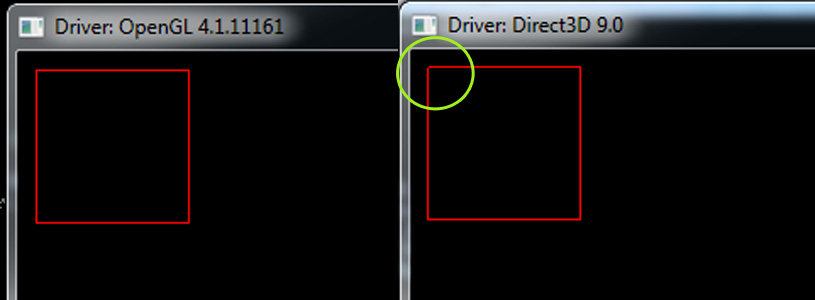

The top left pixel from the rectangle is missing

Using latest revision from Irrlicht trunk.



Testcase:

Code: Select all


#include <irrlicht.h>
#include "driverChoice.h"

using namespace irr;

int main() {
        // ask user for driver
        video::E_DRIVER_TYPE driverType = driverChoiceConsole();
        if (driverType == video::EDT_COUNT)
                return 1;

        // create device with full flexibility over creation parameters
        // you can add more parameters if desired, check irr::SIrrlichtCreationParameters
        irr::SIrrlichtCreationParameters params;
        params.DriverType = driverType;
        params.WindowSize = core::dimension2d<u32>(1024, 768);
        params.Bits = 32;
        IrrlichtDevice* device = createDeviceEx(params);

        if (device == 0)
                return 1; // could not create selected driver.

        video::IVideoDriver* driver = device->getVideoDriver();
        scene::ISceneManager* smgr = device->getSceneManager();
        gui::IGUIEnvironment* env = device->getGUIEnvironment();

        // Set window title
        core::stringw str = L"Driver: ";
        str += driver->getName();
        device->setWindowCaption(str.c_str());

        while (device->run()) {
                if (device->isWindowActive()) {
                        driver->beginScene(true, true, 0);

                        smgr->drawAll();

                        env->drawAll();

                        // Draw rectangle
                        irr::core::recti rect = irr::core::recti(10,10, 100,100);
                        driver->draw2DRectangleOutline(rect, video::SColor(255,255,0,0));

                        // test line
                        driver->draw2DLine(core::vector2di(10,8), core::vector2di(100,8), video::SColor(255,255,0,0));

                        driver->endScene();
                }
        }

        device->drop();

        return 0;
}



EDIT:

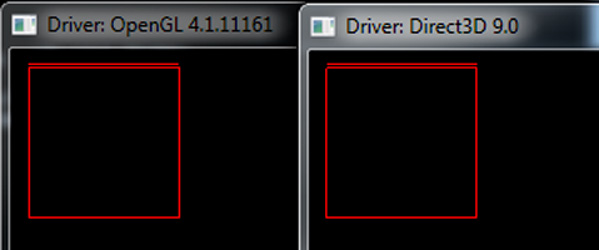

draw2Dline() seems to be the problem

[Cube_]

o.0
that is odd... and it kind of annoys me.

[Brkopac]

o.0
that is odd... and it kind of annoys me.

Your post brings great insight into the aforementioned bug. We, as a community, would like to thank you for your generous contribution.

[hybrid]

I guess it's the problem with texture/pixel alignment under d3d. The positions are slightly offset, hence there's one part missing.

[RdR]

I guess it's the problem with texture/pixel alignment under d3d. The positions are slightly offset, hence there's one part missing.

So CD3D9Driver::draw2DLine() should be fixt?

http://msdn.microsoft.com/en-us/library ... 85%29.aspx

[hybrid]

Yeah, whatever a fix would be here. I know this page, but it's not obvious why three of four corners are properly working.

[RdR]

Yeah, whatever a fix would be here. I know this page, but it's not obvious why three of four corners are properly working.

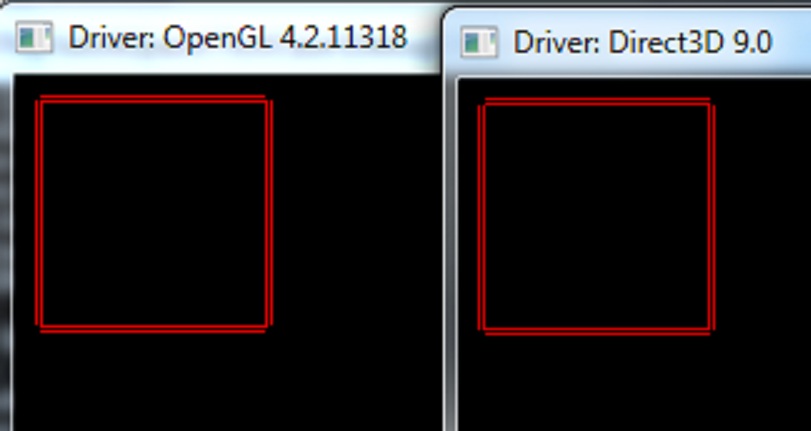

All the lines are shifted 1 pixel in the X and Y direction in DirectX.
And the bottom right corners overlaps with 2 lines.



Test:

Code: Select all


// Draw rectangle
irr::core::recti rect = irr::core::recti(10, 10, 100, 100);
driver->draw2DRectangleOutline(rect, video::SColor(255, 255, 0, 0));

// test line
driver->draw2DLine(core::vector2di(10, 8), core::vector2di(100, 8), video::SColor(255, 255, 255, 0)); // Top line
driver->draw2DLine(core::vector2di(8, 10), core::vector2di(8, 100), video::SColor(255, 255, 255, 0)); // Left line
driver->draw2DLine(core::vector2di(10, 102), core::vector2di(100, 102), video::SColor(255, 255, 255, 0)); // Bottom line
driver->draw2DLine(core::vector2di(102, 10), core::vector2di(102, 100), video::SColor(255, 255, 255, 0)); // Right line


[hybrid]

Actually, the problem was even worse. Line start and ending were respected differently for every driver. Some made a last point on the end point, some not. Which also lead to the situation that rendering from X1 to X2 was different to rendering from X2 to X1. All these issues should be fixed now, including rendering only from X1 to X1. This is equivalent to drawPixel(X1) now.

[RdR]

Nice, thanks!
